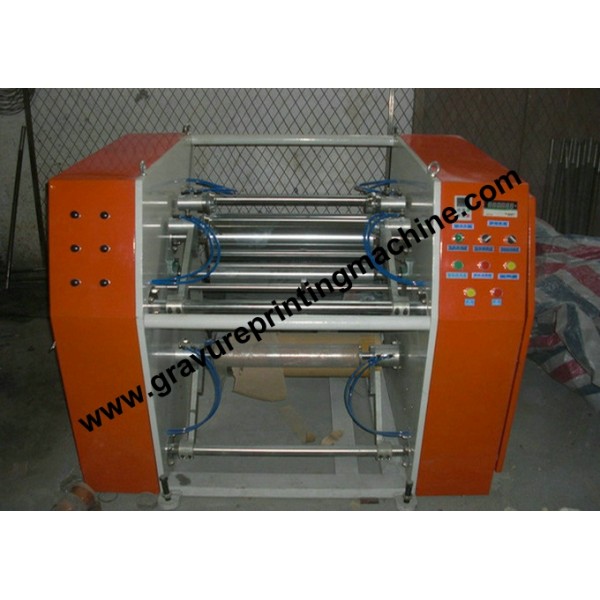

Stretch Film Rewinder

It is a kind of multifunctional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.

Main Technical Parameters:

Model	KDRW-500
Width of finished product	500mm
Power of motor	1.5KW
Mechanical linear speed (max)	400 m/min
Roll Laying Mode	By hand
Diameter of parent roll(max)	400mm
Width of parent roll (max)	500mm
Core specification of parent roll	3"
Width of sub-roll	500mm
Diameter of sub-roll (max)	300mm
Core speciation of sub-roll	3" , 2"
Dimensions (LWH)	1.41.11.1m
Weight	700 Kg
