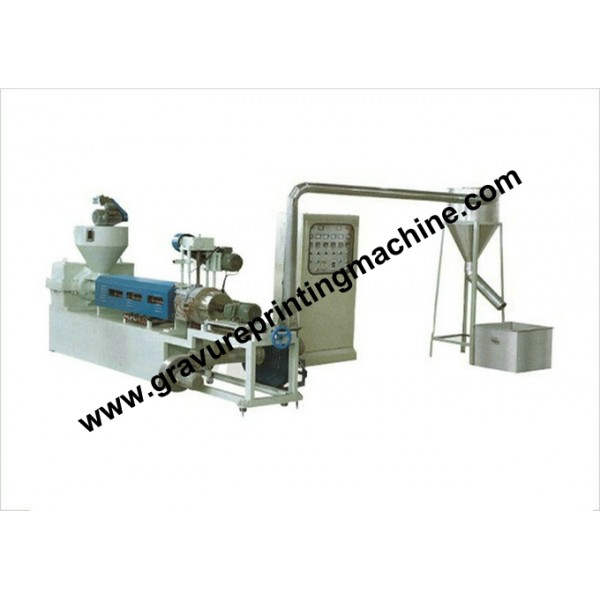

Wind cooling Recycling Machine

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic temperature controller.

Main Technical Variables:

Model	KD-A90	KD-A100	KD-A110	KD-A120
Diameter of Screw	90	100	110	120
Major Diameter Ratio of Screw (L/D)	20:1 -22:1	20:1 -22:1	20:1 -22:1	20:1 -22:1
Rational Speed of Screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall	2600kg	2800kg	3000kg	3200kg
Over dimensions (m)	41.51.8	4.21.51.8.	4.41.51.8	4.61.51.8
