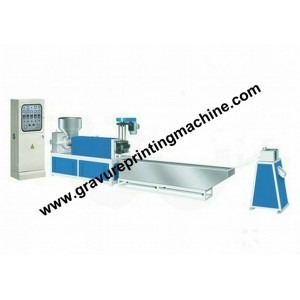

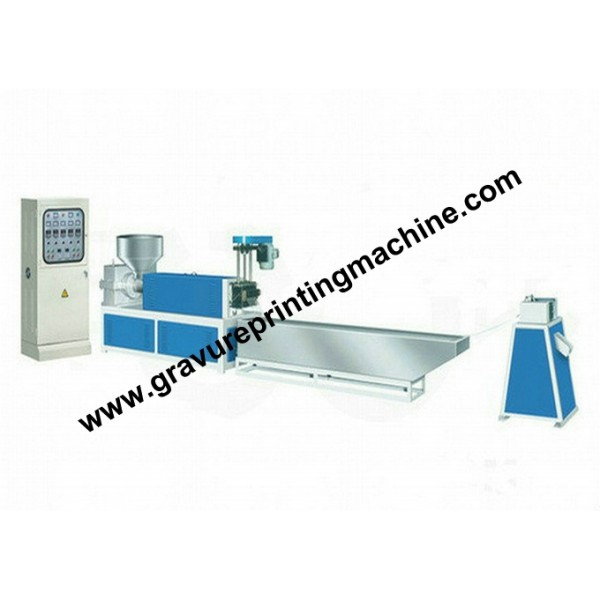

Plastic Recycling Machine

Plastic Recycling Machine is suitable for regeneration and granulation of waste plastics, as HDPE,LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.

Main Technical Variables:

Model	KD-B 90	KD-B 100	KD-B110	KD-B120
Diameter of Screw	90mm	100 mm	110 mm	120 mm
Major Diameter Ratio of Screw L/D	20:1 -22:1	20:1 -22:1	20:1 -22:1	20:1 -22:1
Rational Speed of Screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2000kg	2100kg	2200kg	2500kg
Cover dimensions (m)	81.21.8	8.21.61.8	8.51.61.8	8.81.61.8
