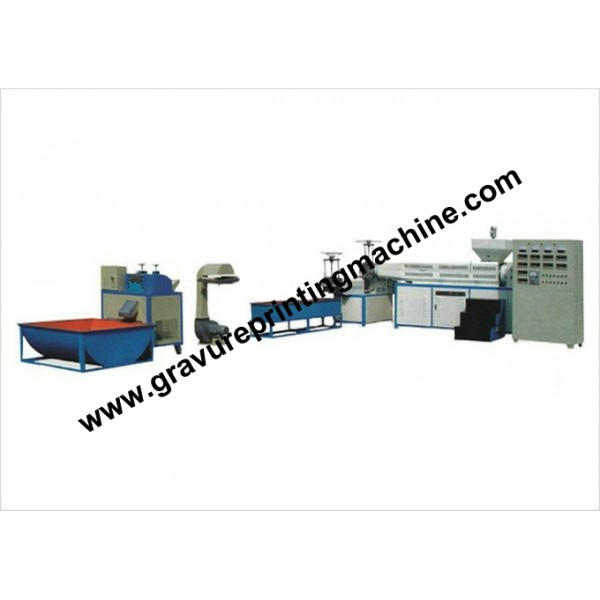

High speed Plastic Recycling Machine

High-speed Recycling Machine can be used to process clean or old broken PP/PE plastics into
granules that can be reused an the raw materials. The helical gear reducer
made of 20CrMnTi alloy steel is applied to the extruder and the screw and
cylinder are made of 38CrMoA1A alloy steel after nitrogenization treatment,
which is durablelt consists of main extruder and sub-extruder ,water tank and
cutting part with alloy rotary cutter.Besidesit is optional to be collocated with
drying fan

Main Technical Variables:

Model		KD-D 135/110	KD-D 115/90
Diameter of screw(mm)	Main screw	135	115
	Sub-screw	110	90
L/D Ratio	Main-screw	20:1	20:1
	Sub-screw	12:1	12:1
Power of motor (mm)	Main screw	37	30
	Sub-screw	15	11
Speed of screw(r/min)		10-120	10-120
Total heating power(kw)		60	50
Cap city (kg/h)		150-200	120-150
Power of cutter		3	2.2
