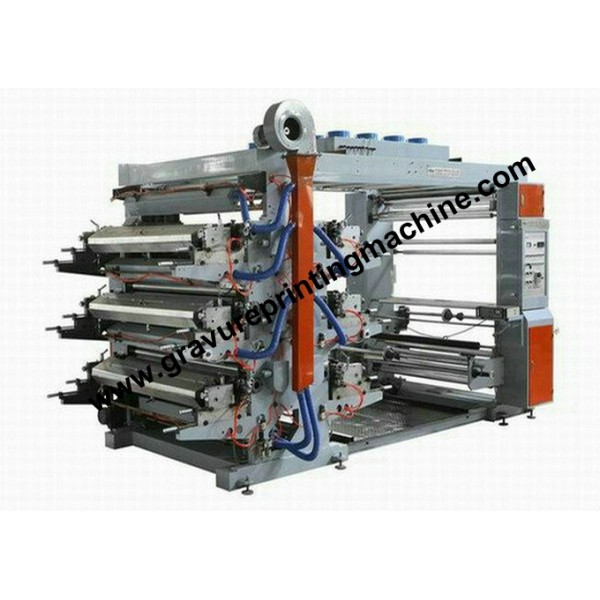

Six Colors Flexo Printing Machine

Six Colour Flexo Printing Machine suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Performance and Features

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 degree countinuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Variables:

Model of Machine	YT-6600	YT-6800	YT-61000
Color	Six color	Six color	Six color
Max.Width of Printing Material	600mm	800mm	1000mm
Max.Printing Width	560mm	760mm	960mm
Length Range of Printed Product	180-1200mm	180-1200mm	180-1200mm
Max.Diameter of Roll Material	450mm	450mm	450mm
Printing Speed	60m/min	60m/min	60m/min
Thickness of plate(Including Two-sides Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	13kw	19.5kw	24kw
Weight of Machine	3500kg	4200kg	5000kg
Overall Dimensions(m)	4.81.62.4	4.81.82.8	4.82.2.8

OPTIONAL EQUIPMENT:

1) Edge position control

2) Ceramic anilox roller

3) Ink pump

4) Magnetic power brake
