Feature:

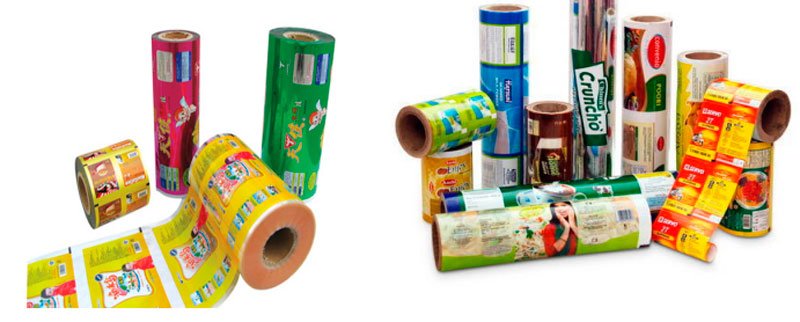

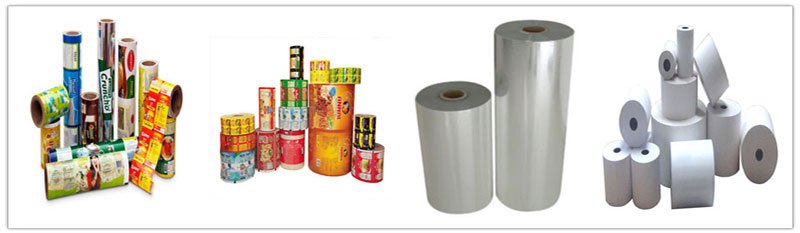

1.Suit to LDPE film,HDPE film,LLDPE film,BOPP film,PP film,PET film,paper,
2.inverter control slitting machine speed,save power and ECO,save cost
3.Film width 100mm-1300mm
4.Edge position control
5.Automatic tension controller
6.Screw material is 38CrMoAl,can use long time
7.Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
8.Machine with simple design,easy operate
9.Machine is economic design,suit for new beginner or starters
10.Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
11.Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
12.We are welcomed customers Customized machines or OEM design.
| Type | LFQ-700A | LFQ-1100A | LFQ-1300A |
| Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
| MAX.Diameter of Mother Roll | Φ600mm | Φ600mm | Φ600mm |
| Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
| Material | BOPP,OPP,CPP,PET,LDPE,HDPE,Paper | ||
| Slitting and Rewinding Speed | 5-160m/min | 5-160m/min | 5-160m/min |
| Tolerance of EPC | <±0.5mm | <±0.5mm | <±0.5mm |
| Total Power | 2.7kw | 3.5kw | 3.5kw |
| Machine Weight | 1200kg | 1500kg | 1800kg |
| Machine size | 2000×1110×1400mm | 2400×1110×1400mm | 2600×1110×1400mm |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diameter | 58mm,76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
