Two Colors Middle Speed Flexographic Printing Machine

Printing Machine

Hot Products

Two Colors Middle Speed Flexographic Printing Machine

Constitution of Printing: Metal Anilox roller, Rubber roller, Chrome plated roller, printing Cylinder for printing length 400mm, Optional device :ceramic anilox roller,single doctor blade,ink pump; Working Principle: helical gears

Product information

Two Colors Middle Speed Flexographic Printing Machine

Two Colors Middle Speed Flexographic Printing Machine

  YT-M2600 YT-M2800 YT-M21000 YT-M21200
Max.material width 600mm 800mm 1000mm 1200mm
Max.printing width 560mm 760mm 960mm 1160mm
Main motor power 2.2kw 2.2kw 2.2kw 2.2kw
Total power 12kw 12kw 14kw 14kw
Machine weight 2000kgs 2400kgs 3700kgs 4000kgs
Outline dimension 2.2×1.6×2.2m 2.2×1.8×2.2m 2.2×2.0*2.2m 2.2×2.2×2.2m
Printing colors 2 colors (2+0,1+1)
Printing length 220-1200mm
Machine speed 100m/min
Printing speed 70-80m/min
Material of Plate Resin or Rubber
Constitution of Printing Metal Anilox roller、Rubber roller 、Chrome plated roller、 printing Cylinder for printing length 400mm
  Optional device :ceramic anilox roller,single doctor blade,ink pump;
Working Principle helical gears
Printing precision +/-0.25mm
Thickness of Plate (including the glue) 2.38mm
Machine Voltage 380V 50/60HZ 3PH

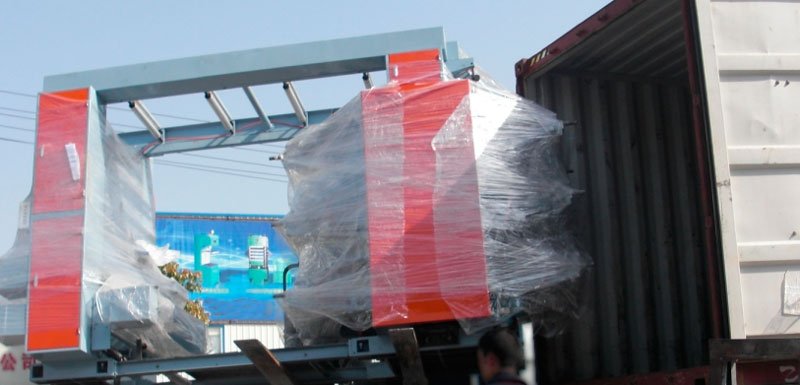

Loading container





Two Colors Middle Speed Flexographic Printing Machine

Two Colors Middle Speed Flexographic Printing Machine

Two Colors Middle Speed Flexographic Printing Machine
