Solventless Lamination Machine Advantages:
1)Rigid shaft-less unwind-rewind units
2)Closed loop tension control via dancer roller
3)Computer Controls for all machine functions
4)Exceptional lamination pressure control for remarkable finished
5)Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
6)Machine with simple design,easy operate
7)Machine is economic design,suit for new beginner or starters
Technical Parameters:
| Item | BGFH-W |
| Max. Laminating Speed | 450 m/min |
| Max. Laminating Width | 1050/1250/1350mm |
| First Dia.of Unwinding | Max.Φ800mm |
| Second Dia.of Unwinding | Max.Φ800mm |
| Glue Spread | 1.0-3.0g/m |
| Laminated Film Type | BOPP, OPP, NY, PVC, CPP,Aluminum foil etc. |

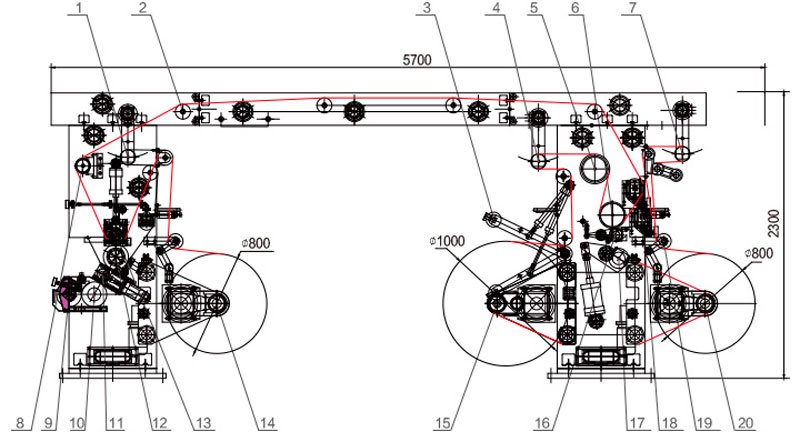

| 1. Tension Swimming Roller 2. Feeding Guide Roller 3. Rewinding Pressure Roller 4. Tension Swimming Roller 5. Cooling Roller 6. Laminating Roller 7. Tension Swimming Roller |
8. Tension Sense Roller 9. Doctor Blade Roller 10. Metering Roller 11. Gluing Roller 12. Coating Roller 13. Coating Pressure Roller 14. The First Unwinding |
15. The Rewinding 16.Laminating Pressure Roller 17. Laminating Back Pressure Roller 18. Adjustable Guide Roller 19. Moving Guide Roller 20. The Second Unwinding |
Our Main parts cooperator as following brand,but standard parts all made from China.
