Performance:
Easy operation,flexible starting,accurate color register.
the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .
the printing ink is spread by the anilox cylinder with even ink color.
Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
360°continuous and adjustable longitudinal register device.
The frequency control of motor speed adapts to different printing speeds.
There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
| YT-A6600 | YT-A6800 | YT-A61000 | YT-A61200 | |
| Max.material width | 600mm | 800mm | 1000mm | 1200mm |
| Max.printing width | 560mm | 760mm | 960mm | 1160mm |
| Heating power | 35kw | 35kw | 35kw | 35kw |
| Machine weight | 5000kgs | 5200kgs | 5400kgs | 5600kgs |
| Outline dimension | 6×1.8×3.5m | 6×2.0x3.5m | 6×2.2×3.5m | 6×2.4×3.5m |
| Printing colors | 6 colors (6+0,5+1,4+2,3+3) | |||
| Printing length | 300-1100mm | |||
| Machine speed | 150m/min | |||
| Printing speed | 100m/min (120m/min with optional:chamber doctor blade) | |||

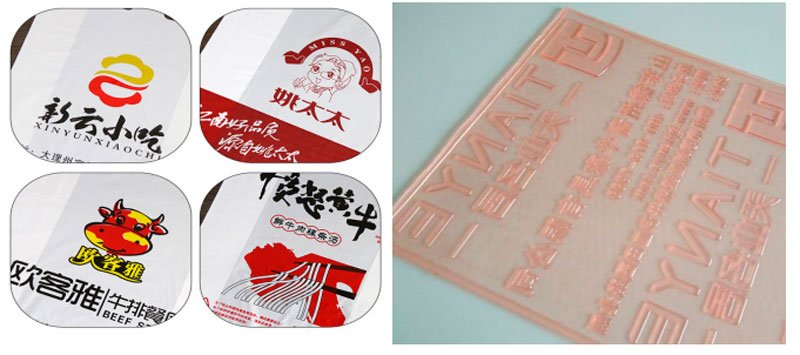

| Material of Plate | Resin | |||

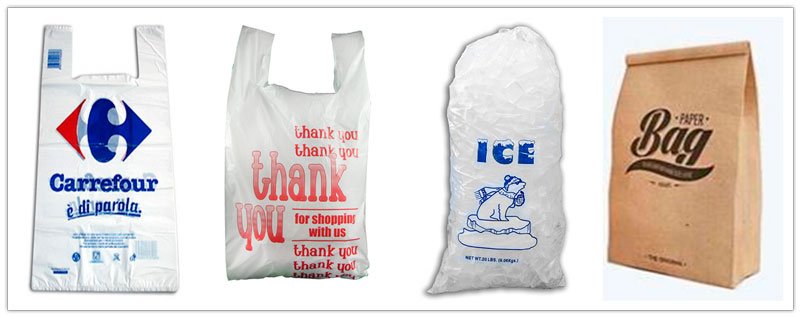

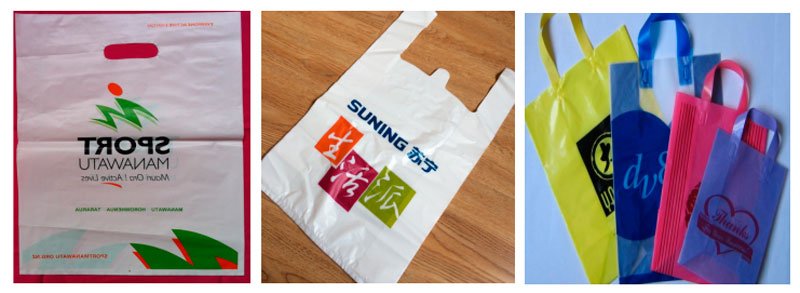

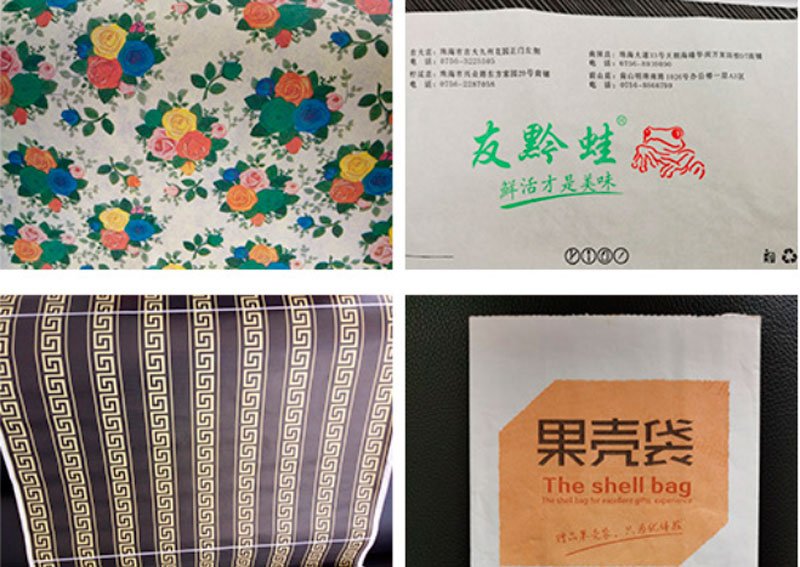

| Suitable Material | PAPER∶15~300g/m²、 NONWOVEN∶15-120G、PC∶10-120μm、OPP∶10-100μm、BOPP∶10-100μm、PE∶15-150μm、NY∶10-120μm、 PET∶10-100μm、CPP∶10-100μm | |||
| Adjusting of register | Electric motor control （vertical and horizontal） | |||
| Constitution of Printing | Ceramic Anilox roller 6pcs、single doctor blade 6pcs、printing Cylinder for printing length 400mm、 PLC touch screen controller | |||
| Optional device :chamber doctor blade; | ||||
| Working Principle | synchronous belt driving | |||
| Printing precision | +/-0.15mm | |||
| Thickness of Plate (including the glue) | 1.7mm (please note us for different thickness) | |||
| Machine Voltage | 380V 50/60HZ 3PH | |||

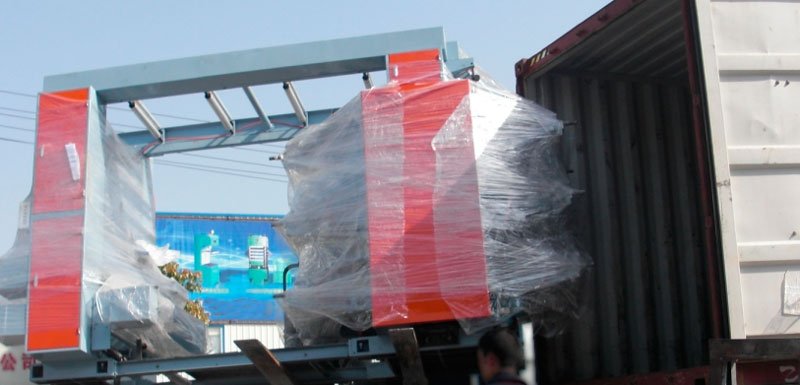

Loading container
FAQ
Q: I need a quotation/How much is your price?
A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.
Q: What’s your delivery time?
A: Usually finish the production within 30 workdays after your 30% advanced payment
Actually need to check according our stock & production plan.
Q: How long is your machine’s warranty period?
A: All our machine have one year guarantee.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
