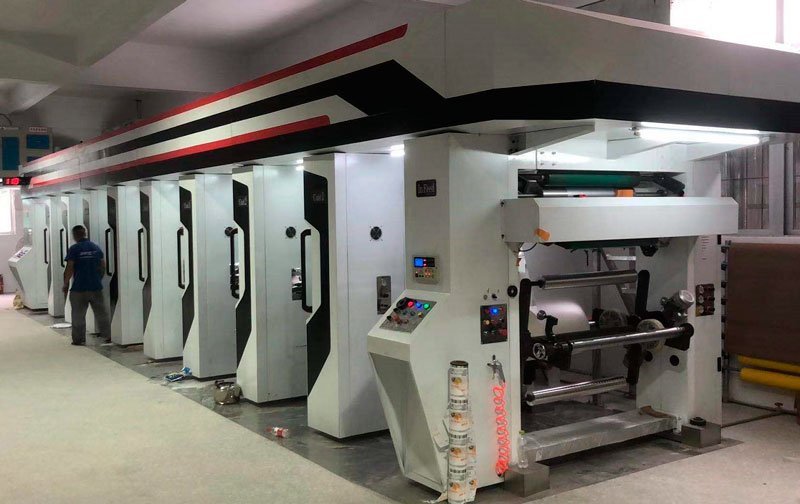

This machine is suitable for printing roll plastic, film, OPP,nonwoven cloth, PVC,thin leather, paper,aluminum foil, cloth and various soft packages with excellent Performance and it is a kind of ideal printing equipment for wine box, shoe bag and vest bag.
Feature:
1. Double air-shaft in rewinding, dual-station auto receiving material without stop.
2. Unwinding auto constant tension control
3. Air cooling device
4. Options: water cooling device
5. Swing roller double cylinder impressing
6. Shaft-less type load plate
7. Drying device is double layer circular hot air oven
8. Centralize exhause air device
9. Computer register system(brand according to clients)
10. Video inspection unit (brand according to clients)
11. Extra options: obverse and inverse double printing device
12. Torque motor for rewinding.
| Model of machine | KDASY-C800 | KDASY-C1000 | KDASY-C1200 |
| Width of Printing | 800mm | 1000mm | 1200mm |
| Max. Machinery speed | 120m/min | 120m/min | 120m/min |
| Printing Speed | 10-100m/min | 10-100m/min | 10-100m/min |
| Max. Dia. Of Roll | 600mm | 600mm | 600mm |
| Dia. Of roll core | 76mm | 76mm | 76mm |
| Version Accuracy | +/-0.1mm | +/-0.1mm | +/-0.1mm |
| Dia. Range of Printing Cylinder | 100-350mm | 100-350mm | 100-350mm |
| Total Power | 110kw | 115kw | 120kw |
| Outline Dimension | 8800×1600×2000mm | 8800×1800×2000mm | 8800×1800×2000mm |
