Feature:
1. Adopting frequency vector conversion motors control the main motor, unwinding and rewinding, and tension of them. (seven motors controlled)
2. Lengthways and transverse accuracy are controlled by the full automatic registering device, as well as pre-register function.
3. Video frequency system is installed.
4. Non-shaft pneumatic conic node printing prompt and convenient when change the printing plate.
5. Sealed hot wind circulation oven, automatic constant temperature, diesel oil air-stove or electrical heating for the drying methods.
6. Pneumatic draw knife, single motor controls the swing way, the swing frequency is adjustable.
7. Holistic moving oil frame, turning the ink in the barrel with the rubber rollers, pneumatic pump circulation.
8. High accuracy gear transmission box, adopting patented technique.
9. Unwinding and rewinding both worked by the dual-station mechanism, realizing auto material change without machine halt at high speed, adopting the air expansion shaft for load and unload.

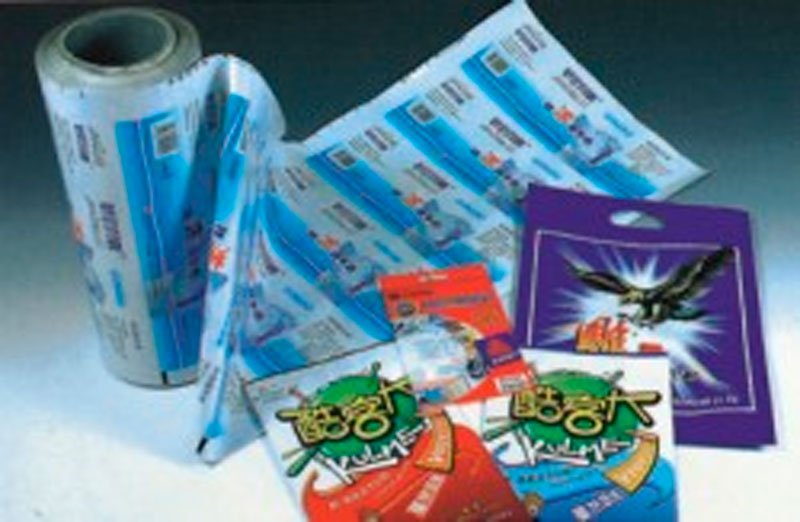

Application:
| Model of machine | KDASY-F800 | KDASY-F1000 | KDASY-F1200 |
| Width of Printing | 800mm | 1000mm | 1200mm |
| Max. Machinery speed | 180m/min | 180m/min | 180m/min |
| Max. Printing Speed | 150m/min | 150m/min | 150m/min |
| Max. Dia. Of Roll | 600-800mm | 600-800mm | 600-800mm |
| Dia. Of roll core | 76mm | 76mm | 76mm |
| Version Accuracy | +/-0.1mm | +/-0.1mm | +/-0.1mm |
| Dia. Range of Printing Cylinder | 120-360mm | 120-360mm | 120-360mm |
| Total Power | 180kw | 200kw | 260kw |
| Outline Dimension | 8800×1600×2000mm | 8800×1800×2000mm | 8800×1800×2000mm |
