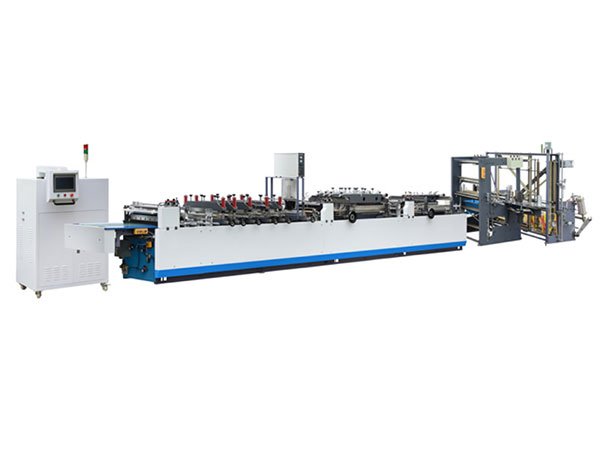

Three-side Sealing Zipper Standing Bag Making Machine (Three servo motor）

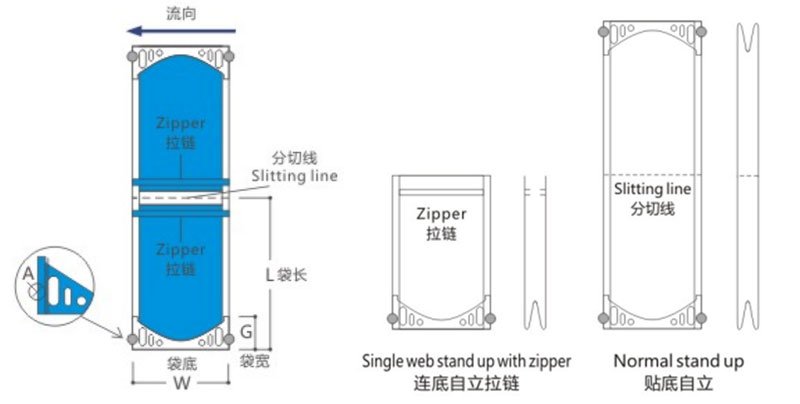

w：60-250mm （When >250, use Double mode feed）
L：120-270mm （When two lines bag making）
G：20-70mm
Remark: Skip feeding function available for length over 400mm.
1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, EPC edge position controller, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
7. Temperature adjustment range: 0~300°C.
8. Counter: quantity, batch accumulation, preset available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10.Punching device: working rhythm can preset as continuous, interval or stop, punching time can be preset.
11.Material Skip Feeding: one to six times available.
12.Batch Conveying Function available, the quantity of batch can be preset.
| KDZD-E600 | |
| Max.Diameter of roll material | 600mm |
| Max.Width of roll material | 1250mm |
| Max.Capacity | 160 section/min（pieces/mm） |
| Max.Mechanical speed | 40meter/min |
| Max.Bag-making Width | 600mm |
| Bag-making Length | 50-2400mm |
| Total Power | 65Kw |
| Weight | 7500kg |
| Outline Dimension | 12500x2500x1900mm |
Our Main parts cooperator as following brand,but standard parts all made from China.
