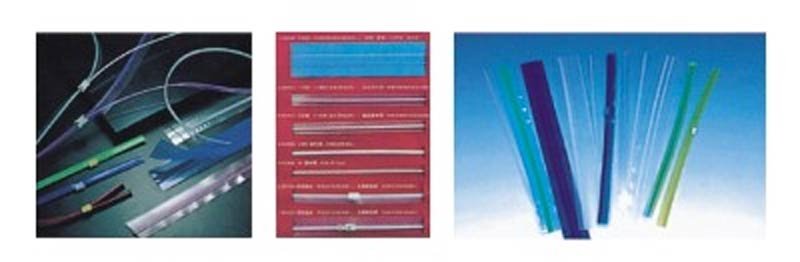

Zip Film blowing machine produce high quality film,suit for general packaging products such as zip lock bag,sandwich bag,medicine bag and many others.
1.Cylinder screws of extruding machine are all treated and processed with optimization with the best hardness and corrosion resistance.
2.Double rolling as rolling equipment.
3.Neat rolling and convenient roll changing.
Feature:
1. LDPE,PP virgin raw material, recycled material
2. inverter control film extruder speed,save power,ECO and save cost.
3. Film thickness 0.01mm-0.1mm
4. Film width 100mm-500mm
5. Film suit for zip lock bag,sandwich bag,medicine bag.
6. Screw material is 38CrMoAl,can use long time
7. adopts torque motor to keep suitable tension
8. Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
9. Machine with simple design,easy operate
10. Machine is economic design,suit for new beginner or starters
11. Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
12. Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
We are welcomed customers Customized machines or OEM design.
Main Technical Variables:
| Model： | ZIP-45 |
| Max. Width of Tube Film | 100-600mm |
| Material | LDPE,HDPE,LLDPE,recycle material |
| Film Color | Transparent,Black,Red,White,blue…bag color changed by mastbatch |
| Usage | Plastic T-shirt bag,trash bag,packing film,table cover |
| Draw ration of screw ： | 28:1 |
| Tran sducer motor： | 5.5kw |
| Power of assistant machine ： | 0.75kw |
| Heater： | 10kw |
| Cooling： | 5HP |
| Power： | 15kw |
| Overall dimension(l x w x h)： | 6800 x 1200 x 1800mm |
| Voltage： | 50HZ-60HZ 380v |
| Resin applicable： | LDPE-PP |
| Capacity： | 10-50(Cycle/min) |
| Extrusion width： | 3-50mm |
| Thickness of film ： | 0.1-0.3mm |
| Film annulus diameter ： | φ500mm |
| Diameter Of screw ： | φ45mm |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) |
| Material Core Diameter | 76mm |
| Machine Working Time | 24 hours * 7 days |
| Warranty | 1 year |
| Technical Assistance | Engineers available to service machinery overseas |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.

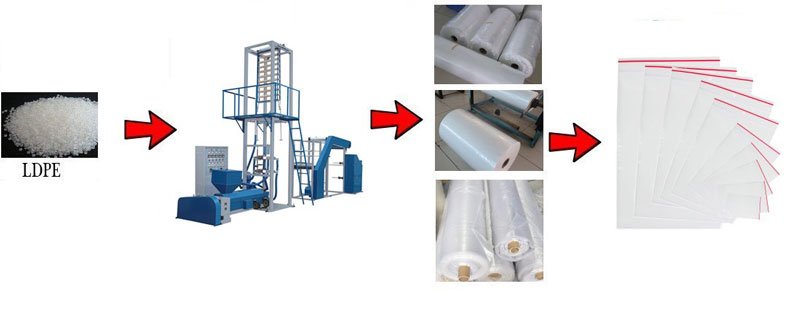

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
