Film blowing machine produce high quality film,suit for general packaging products such as flat bag,T-shirt bags, supermarket bags,shopping bag,sachet water bag,packing film and many others.
Film extruder Connect with two colors Gravure Printing machine ,printing machine speed as same as film blowing machine speed.We can add printing machine colors as buyer request.

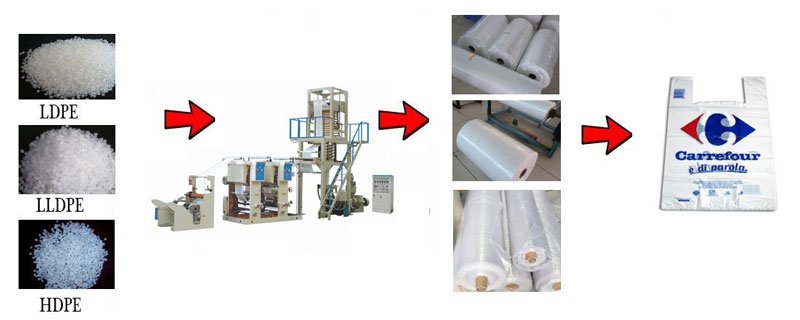

Plastic film blowing machine is to heat and melt plastic particles and then blow them into thin films. It produces membranes, which are widely used in many fields according to their materials and properties. It is suitable for all kinds of high-grade film packaging, plastic bag film, protective film and so on. Because of its good barrier, fresh-keeping, moisture-proof, frost-proof, oxygen-proof and oil-proof, the film can be widely used in light and heavy packaging, such as various fresh fruits, meat products, pickles, fresh milk, liquid beverages, medical supplies, etc.
Optional Device:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
| Model | SJ50- ASY2600 | SJ55- ASY2800 | SJ60- ASY21000 |
| Blowing Flim Width | 600mm | 800mm | 1000mm |
| Printing Width | 600mm | 800mm | 1000mm |
| Printing Length | 191-1200mm | 191-1200mm | 191-1200mm |
| Printing Color | 2 colors | ||
| Mterials | LDPE,HDPE,LLDPE,recycle material | ||
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Usage | Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film | ||
| Screw Dia. | 50mm | 55m | 60mm |
| Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
| Blow Film Motor Power | 11Kw | 15Kw | 18.5Kw |
| Max. Capacity | 35kg/h | 50Kg/h | 65Kg/h |
| Film I lead DIA | φ60、φ 100 | φ80、φ150 | φ100、φ200 |
| Blow film thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 28Kw | 32Kw | 40kw |
| Weight | 3.5T | 4T | 5T |
| Dimensions (m) | 6×2.4×4 | 6.2×2.6×4.3 | 6.4x 2.8x 4.8 |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diameter | 76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
