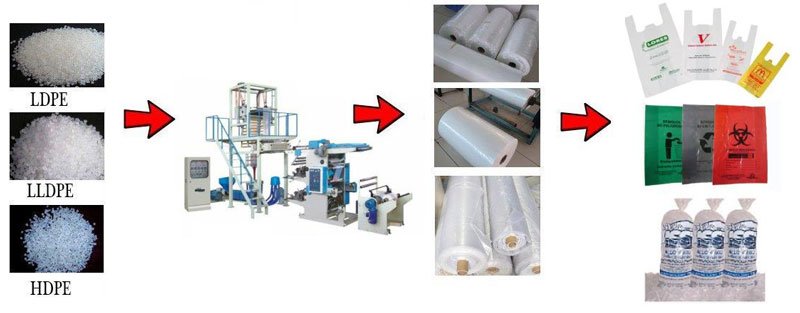

Film blowing machine produce high quality film,suit for general packaging products such as T-shirt bags, supermarket bags,shopping bag,flat bags,sachet water bag,packing film and many others.
Feature:
- LDPE,HDPE,LLDPE virgin raw material, recycled material, CaCO3 compound, masterbatch and additives material
- Inverter control film extruder speed,save power,ECO and save cost.
- Film thickness 0.01mm-0.1mm
- Film width 100mm-1200mm
- Film suit for T-shirt bag,trash bag,flat bag,cloth bag and for package.
- Film blowing machine connect flexographic printing machine in line
- Flexographic printing machine can have 1 color,2 colors,3 colors,4 colors,5 colors…
- Screw material is 38CrMoAl,can use long time
- Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
- Machine with simple design,easy operate
- Machine is economic design,suit for new beginner or starters
- Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
- Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
- We are welcomed customers Customized machines or OEM design.
Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
| Model | SJ50-YT2600 | SJ50-YT2800 | SJ60-YT21000 |
| Materials | LDPE.HDPE.LLDPE | LDPE.HDPE.LLDPE | LDPE.HDPE.LLDPE |
| Max film width | 600mm | 800mm | 1000mm |
| Max Printed film Width | 560mm | 760mm | 960mm |
| Printing colors | 2color | 2 color | 2color |
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Usage | Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film | ||
| Screw Diameter | 50mm | 55m | 60mm |
| Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
| Extruder Motor | 11Kw | 15Kw | 18.5Kw |
| Max Capacity | 35kg/h | 50Kg/h | 65Kg/h |
| Film I lead DIA | φ60、φ 100 | φ80、φ150 | φ100、φ200 |
| Film Width | 600mm | 800mm | 1000mm |
| Film Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Max Printing length | 191-1200mm | 191-1200mm | 191-1200mm |
| Total Power | 28Kw | 32Kw | 40kw |
| Machine Weight | 3.5T | 4T | 5T |
| Machine Size | 6000 x 2400 x 4000mm | 6200 x 2600 x 4300mm | 6400 x 2800 x 4800mm |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Paper Diameter | 58mm,76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
