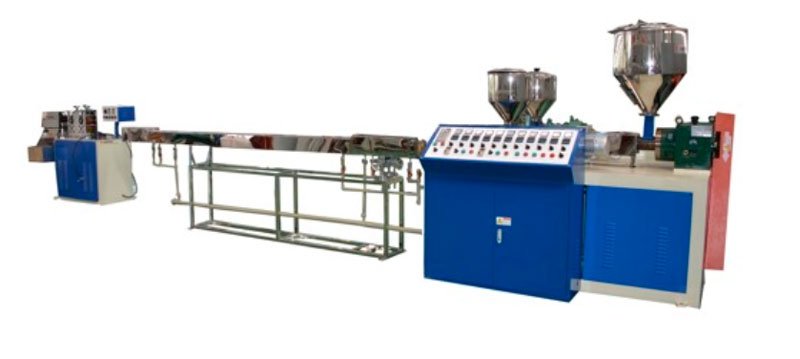

Model | KD-11 | KD-12 | KD-13 |
Colors | 1color | 2colors | 3colors |
Screw dia | 50mm | 50mm | 50mm |
Motor | 11kw | 11kw | 11kw |
Power | 380v 50Hz | 380v 50Hz | 380v 50Hz |
Output | 25-35kg/hour | 25-35kg/hour | 25-35kg/hour |
Product length | ≥50mm | ≥50mm | ≥50mm |
Product dia. | Φ4~12mm | Φ4~12mm | Φ4~12mm |

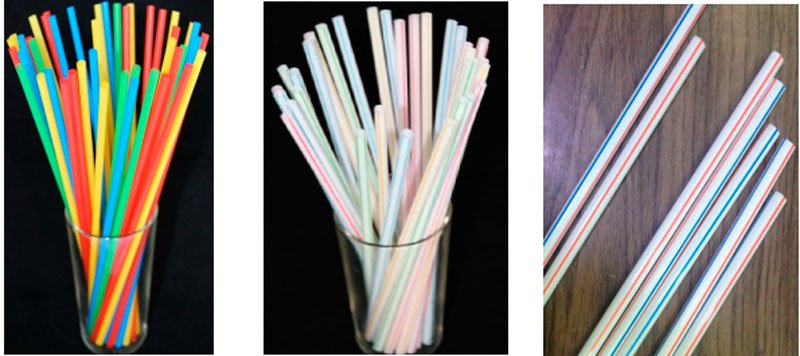

Stripes | Straight | Straight or Helical | Straight or Helical |
Product thickness | 0.05-0.3mm | 0.05-0.3mm | 0.05-0.3mm |
Weight | 900kgs | 1000kgs | 1200kgs |
Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
Machine Working Time | 24 hours * 7 days | ||
Warranty | 1 year |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
