A two-layer air bubble film machine is a type of manufacturing equipment used to produce air bubble film, also known as bubble wrap. This machine is designed to create two layers of film with air bubbles sandwiched between them, providing added protection and cushioning for items during shipping and storage.
A two-layer air bubble film machine works by extruding two layers of plastic film, usually made from materials like polyethylene, and then using a special process to trap air between the two layers, creating the characteristic bubbles. The two layers are then laminated together to form a single sheet of air bubble film.

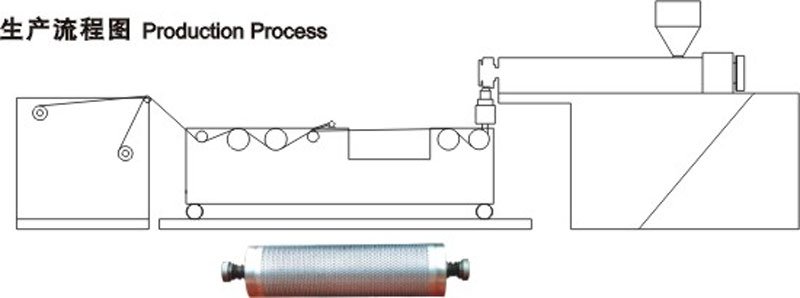

Two Layers Air Bubble Film Machine Production Process
Two Layers Air Bubble Film Machine Main Technical Variables:
| Model | KDPE-1000 | KDPE-1200 | KDPE-1500 |
| Raw Material | LDPE | LDPE | LDPE |
| Screw Diameter | φ65mm | φ75mm | φ90mm |
| Film Width | 1000mm | 1200mm | 1500mm |
| Film Layer | Two Layers | Two Layers | Two Layers |
| Bubble Hole Diameter(mm) | 6,8,10,12,14,16,18,20mm | ||
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Output | 50kg/h | 60kg/h | 70kg/h |
| Total Power | 48kw | 58kw | 68kw |
| L/D Ratio Of Screw | 28:1 | 28:1 | 28:1 |
| Water Consumption | 0.5m3/h | 0.5m3/h | 0.5m3/h |
| Machine Weight | 3 | 4 | 5 |
| Power Voltage | 220V,380V,440V | ||
| Air Shaft Diamater | without paper core ,58mm,76mm | ||
| Machine Working Time | 24 hours*7 | 24 hours*7 | 24 hours*7 |
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Two Layers Air Bubble Film Machine Working Principle
Our Main parts cooperator as following brand,but standard parts all made from China.
These machines are often used by packaging and shipping companies, as well as manufacturers who need to protect their products during transit. The two-layer design provides extra strength and durability, making the air bubble film suitable for a wide range of applications.
Overall, a two-layer air bubble film machine is an essential piece of equipment for producing high-quality protective packaging materials, and it plays a crucial role in ensuring that items are safely and securely packaged for shipping.
