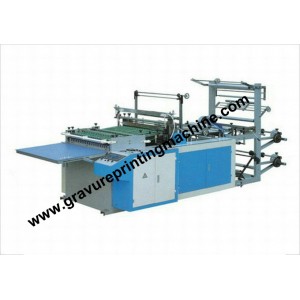

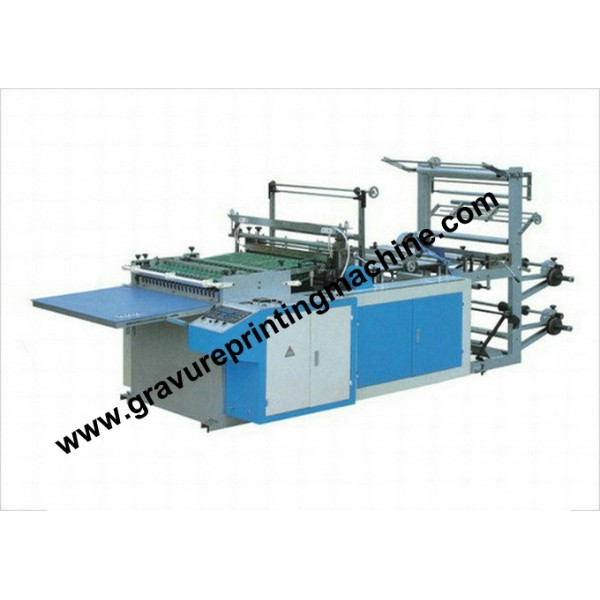

Side Sealing Bag Machine RQL

side sealing Bag Making Machine is suitable for heat-sealing and heat cutting such materials as BOPP,OPP the rmal contracting films,etc.And it is a kind of ideal equipment for making socks bag,towel bag,bread bag and omament bag,etc. The machine has such characteristics as length flxing by computer,photoelectric tracking,stable performance(cast iron stuctrue) and high speed,etc.And has such functions as automatic gluing,automatic punching and lace heat-sealing,etc.

Main Technical Variables:

Model	RQL-600	RQL-800	RQL-1000
Width of sealing & cutting	580mm	780mm	980mm
Length of sealing &cutting	999mm	999mm	999mm
Speed of bag-making	40-240pc/min	40-240pc/min	40-240pc/min
Power of motor	3kw	7kw	10kw
Weight	700kg	850kg	950kg
Outline dimension (m)	3.61.21.7	3.61.41.7	3.61.61.7
