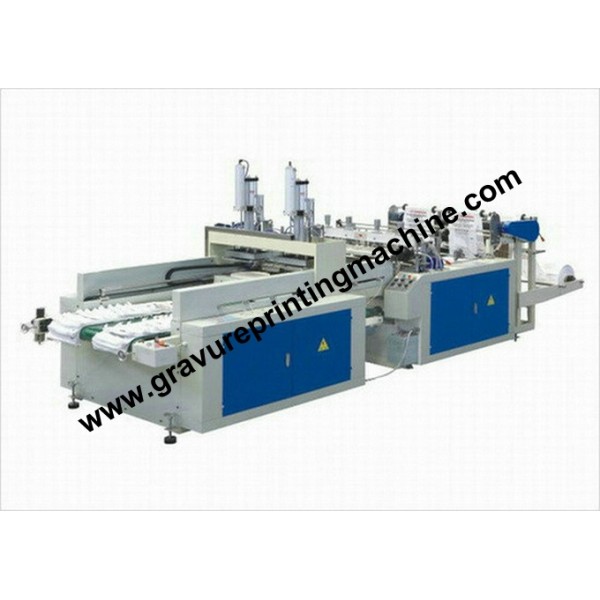

Automatic Plastic Shopping Bag Machine

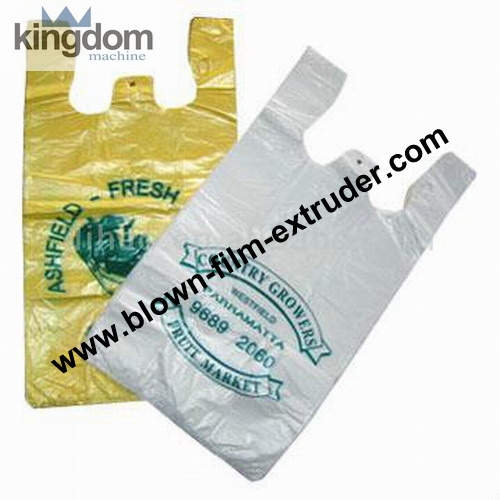

Automatic Plastic Shopping Bag Machine is applied to manufacturing and printing the uncolored vest bags(shopping bag) made of HDPE, LDPE roll plastic film. It adopts PLC control, double step motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.

Main Technical Variables:

Model	DFHQ-350*2	DFHQ-450*2
Max. Bag-making width	300mm*2	400mm*2
Max.Bag-making length	600mm	600mm
Bag-making thickness	0.015-0.035mm	0.015-0.035mm
Bag-making speed	140-200pcs/min*2	140-200pcs/min*2
Air pressure	5kg/cm2	5kg/cm2
Total Power	7kw	9kw
Weight of machine	1400kg	1600kg
Overall dimensions	600014001600mm	600016001600mm
