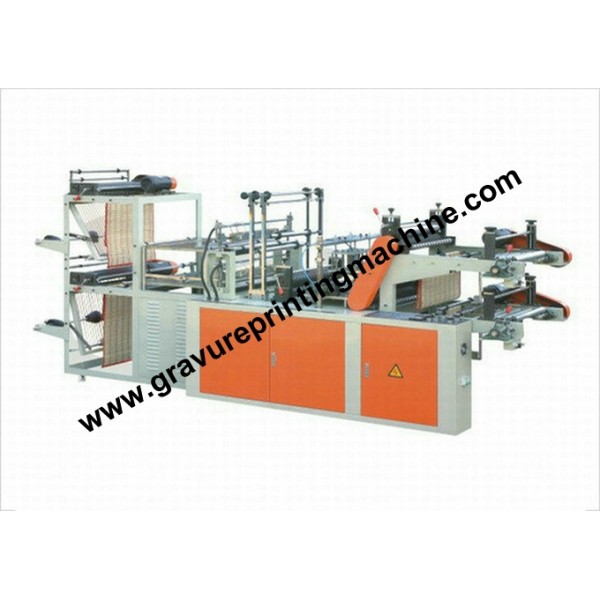

Plastic Rolling T-shirt bag machine

Plastic Rolling T-shirt bag machine is specially-designed point-cut rolling dual-purpose one for vest & flat bags,is controlled by a computer.The step (servo) setting length system reduces the sealing-cutting dimensions errors,and the installation of photoelectric eyes track help make the position of flgure of printing bags accurate. The computer numerical control can bee selected to adjust the length of bag.The machine will automatically stop and sound a waming if there is something wrong with the printing bags.

Use:

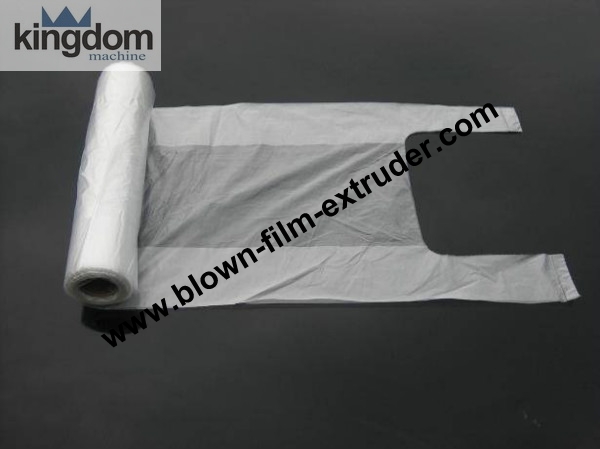

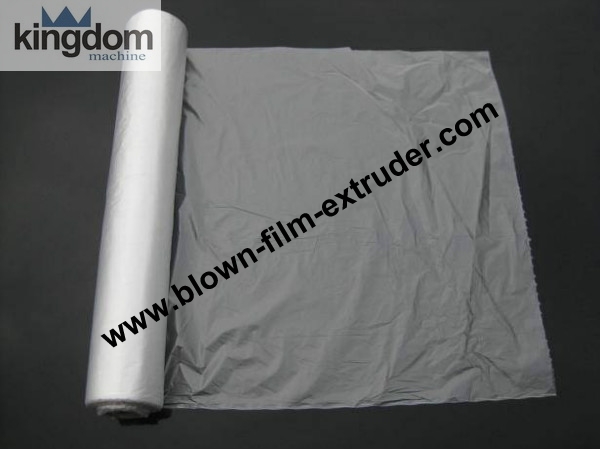

The high and low density polyethylene film bags produced by the machine are applled to shopping in the supermarkets,shops and markets.

Main Technical Variables:

Model	KDB-500	KDB-600	KDB-800
Max.Width of bag-making	400 mm	500 mm	700 mm
Max.length of bag-making	1200mm	1200 mm	1200 mm
Bag-making Thickness	0.008-0.15mm	0.008-0.15 mm	0.008-0.10 mm
Speed of bag-making	40-120 pc/min	40-120 pc/min	40-120 pc/min
Power of motor(kw)	1.1	1.1	1.5
Electric Heating power	1.2KW	1.6KW	2.2KW
Packing Dimensions(mm)	360012001700	340013001700	360015001700
Machinery weight (kg)	800	900	1000
