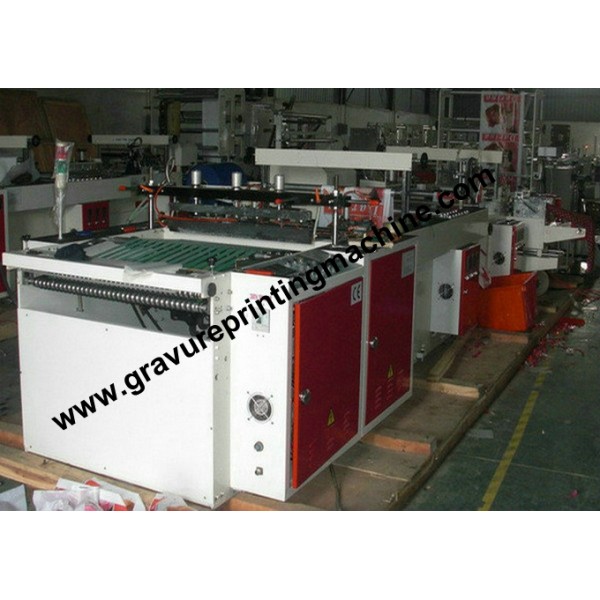

Plastic Patch Bag Machine

The whole machine adopts microcomputer control , with Panasonic servo motor control system. Arbitrary fixed-length, accurate and stable photoelectric tracking, stopping automatically when the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic counting, and can set count alarm. Automatic constant temperature, firm and smooth sealing.

Technical Parameter:

Model		RJHQ-800
Length of bag-making		250-730mm
Width of bag-making		250-600mm
Top-folding edge		50-75mm
Bottom gusseted		20-70mm
Speed of bag-making	Soft loop handle bagPatch handle bagPoly draw handle bagDie cut handle bag	60pcs/min60pcs/min70pcs/min75pcs/min
Total power		13KW
Machine weight		3500kg
Machine dimension		820031001870mm
