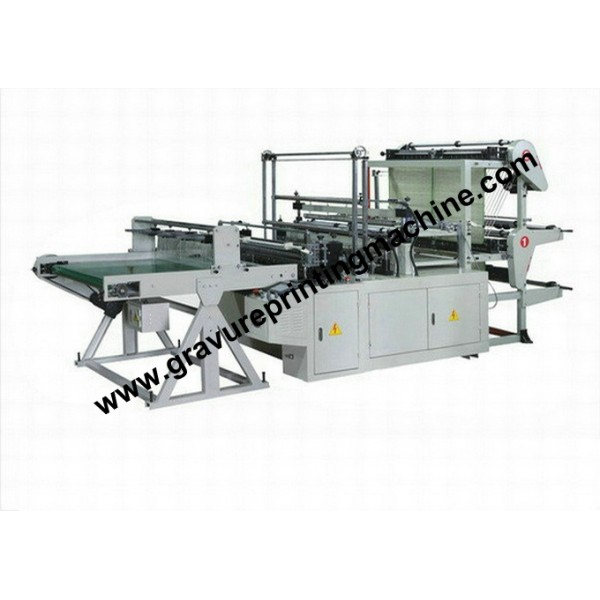

Four lines Plastic Bag Machine

Two lines Plastic Bag Machine

1.Bottom sealing machine is suitable for high density polyethylene (HDPE), the low density gathers alkene(LDPE) plastic film material.which is produces the plastic film to flat bag,

2. the performance of bottom sealing machine is stable, the back cover is reliable, is the large, medium and small processed foods enterprise is most economical appropriately, bag sealing&cutting system equipment.

bottom sealing machineTechnical Parameter :

Model	SHXJ-A600	SHXJ-A700	SHXJ-A800	SHXJ-A900	SHXJ-A1000
width of sealing &cutting	580 mm	680 mm	780 mm	880 mm	980 mm
length of sealing & cutting	700 mm	1200 mm	1200 mm	1400 mm	1600 mm
speed of bag-making (pc/min)	240-400	240-400	60-100	50-100	40-100
Number of strip(pc)	4	4	2	1	1
Power of motor(kw)	1.1	1.5	1.5	2.2	3
Weight(kg)	700	850	900	1000	1100
Outine dimension(m)	3.21.21.7	3.51.31.85	3.6 1.51.95	3.7 1.6 2	3.8 1.82.1
